Typemanual_and_actuator_ready
Torque7,500 nm – 250,000 nm
Ratio379:1 / 288:1 / 192:1 / 145:1
GL / GLEW7.5K.2-GLEW250K.2 / electric_ready_identity
GLEW7.5K.2-GLEW250K.2

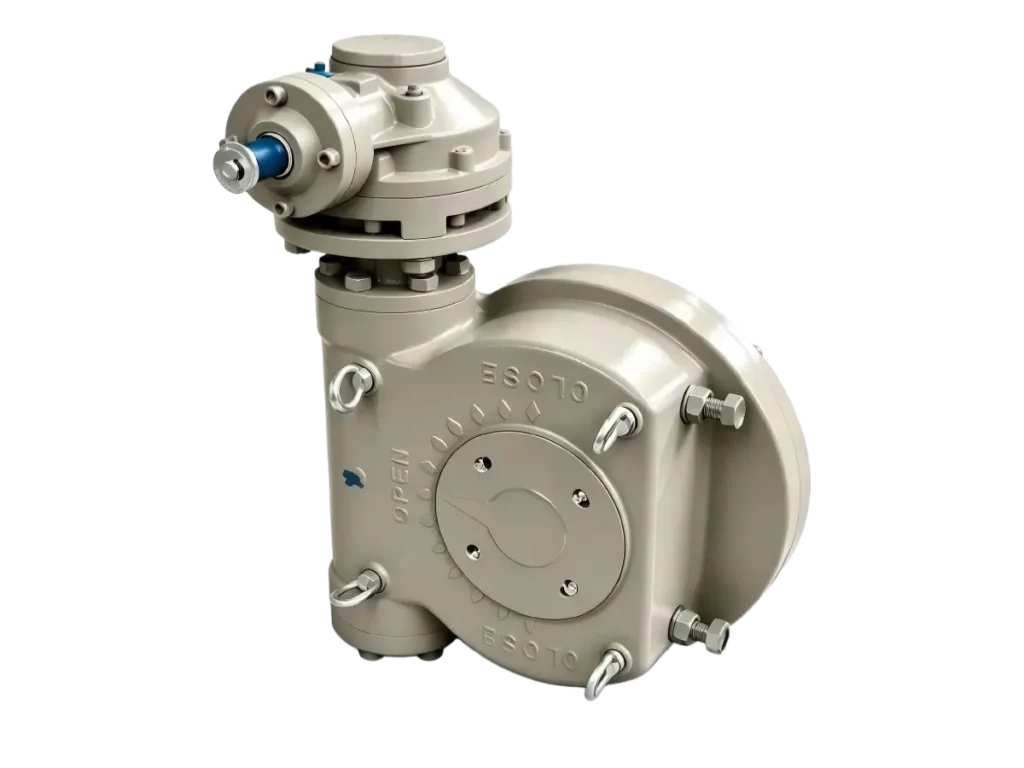

GLEW7.5K.2-GLEW250K.2 Electric-ready Quarter-turn Worm Gearbox Series
GLEW7.5K.2-GLEW250K.2 is organized as one product page group from source sheet GLEW-20 21 22 23, with actual model variants preserved separately.
electric_readyworm_gearquarter_turnbutterfly_valve
Torque Range
7,500 nm – 250,000 nm
Primary Ratio
379:1 / 288:1 / 192:1 / 145:1
Operation Mode
manual_and_actuator_ready
Platform
GL
TFC
Engineering gearbox selection support
ISO
Interface and documentation oriented
OEM
Custom gearbox configuration available
AI
Structured data prepared for future selector
CAD
Engineering files and drawings supported
Product Overview
GLEW7.5K.2-GLEW250K.2 Electric-ready Quarter-turn Worm Gearbox Series
The GLEW7. 5K. 2-GLEW250K.2
The GLEW7. 5K. 2-GLEW250K. 2series is a quarter turn gearbox with multi-ratio worm gear transmission.
Ratio & Input Configuration Matrix
GLEW7.5K.2 optional ratio configuration - 7500 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 379:1 | 7500 | 80 | F25 | F10 | Φ20x6x40 |
| 288:1 | 7500 | 100 | F25 | F10 | Φ20x6x40 |
| 192:1 | 7500 | 150 | F25 | F14 | Φ30x8x50 |
| 145:1 | 7500 | 200 | F25 | F14 | Φ30x8x50 |
GLEW010K.2 optional ratio configuration - 10000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 413:1 | 10000 | 100 | F30 | F10 | Φ20x6x40 |
| 256:1 | 10000 | 150 | F30 | F14 | Φ20x6x40 |
| 192:1 | 10000 | 200 | F30 | F14 | Φ20x6x40 |
| 150:1 | 10000 | 250 | F30 | F14 | Φ30x8x50 |
GLEW13.5K.2 optional ratio configuration - 13500 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 577:1 | 13500 | 100 | F30 | F10 | Φ20x6x40 |
| 346:1 | 13500 | 150 | F30 | F14 | Φ30x8x50 |
| 260:1 | 13500 | 200 | F30 | F14 | Φ30x8x50 |
| 210:1 | 13500 | 250 | F30 | F14 | Φ30x8x50 |
| 172:1 | 13500 | 300 | F30 | F14 | Φ30x8x50 |
GLEW17.5K.2 optional ratio configuration - 17500 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 735:1 | 17500 | 100 | F30 | F10 | Φ20x6x40 |
| 450:1 | 17500 | 150 | F30 | F14 | Φ30x8x50 |
| 330:1 | 17500 | 200 | F30 | F14 | Φ30x8x50 |
| 270:1 | 17500 | 250 | F30 | F14 | Φ30x8x50 |
| 230:1 | 17500 | 300 | F30 | F14 | Φ30x8x50 |
GLEW024K.2 optional ratio configuration - 24000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 1156:1 | 24000 | 90 | F35 | F10 | Φ20x6x40 |
| 620:1 | 24000 | 150 | F35 | F14 | Φ30x8x50 |
| 460:1 | 24000 | 200 | F35 | F14 | Φ30x8x50 |
| 370:1 | 24000 | 250 | F35 | F14 | Φ30x8x50 |
| 310:1 | 24000 | 300 | F35 | F14 | Φ30x8x50 |
| 205:1 | 24000 | 450 | F35 | F14 |
GLEW029K.2 optional ratio configuration - 29000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 1276:1 | 29000 | 100 | F35 | F10 | Φ20x6x40 |
| 740:1 | 29000 | 150 | F35 | F14 | Φ30x8x50 |
| 560:1 | 29000 | 200 | F35 | F14 | Φ30x8x50 |
| 450:1 | 29000 | 250 | F35 | F14 | Φ30x8x50 |
| 380:1 | 29000 | 300 | F35 | F14 | Φ30x8x50 |
| 255:1 | 29000 | 450 | F35 | F14 |
GLEW036K.2 optional ratio configuration - 36000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 1926:1 | 36000 | 80 | F40 | F10 | Φ20x6x40 |
| 1390:1 | 36000 | 100 | F40 | F10 | Φ20x6x40 |
| 930:1 | 36000 | 150 | F40 | F14 | Φ30x8x50 |
| 800:1 | 36000 | 200 | F40 | F14 | Φ30x8x50 |
| 690:1 | 36000 | 250 | F40 | F14 | Φ30x8x50 |
| 465:1 | 36000 | 300 | F40 | F14 | Φ30x8x50 |
| 310:1 | 36000 | 450 | F40 | F14 |
GLEW042K.2 optional ratio configuration - 42000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 2251:1 | 42000 | 80 | F48 | F10 | Φ20x6x40 |
| 1390:1 | 42000 | 100 | F48 | F10 | Φ20x6x40 |
| 1076:1 | 42000 | 150 | F48 | F14 | Φ30x8x50 |
| 810:1 | 42000 | 200 | F48 | F14 | Φ30x8x50 |
| 655:1 | 42000 | 250 | F48 | F14 | Φ30x8x50 |
| 540:1 | 42000 | 300 | F48 | F14 | Φ30x8x50 |
| 360:1 | 42000 | 450 | F48 | F14 |
GLEW053K.2 optional ratio configuration - 53000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 2446:1 | 53000 | 100 | F48 | F10 | Φ20x6x40 |
| 1360:1 | 53000 | 150 | F48 | F10 | Φ20x6x40 |
| 1030:1 | 53000 | 200 | F48 | F14 | Φ30x8x50 |
| 820:1 | 53000 | 250 | F48 | F14 | Φ30x8x50 |
| 680:1 | 53000 | 300 | F48 | F14 | Φ30x8x50 |
| 465:1 | 53000 | 450 | F48 | F14 | Φ40x12x60 |
| 345:1 | 53000 | 600 | F48 | F16 |
GLEW065K.2 optional ratio configuration - 65000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 2957:1 | 65000 | 100 | F48 | F10 | Φ20x6x40 |
| 1680:1 | 65000 | 150 | F48 | F14 | Φ30x8x50 |
| 1260:1 | 65000 | 200 | F48 | F14 | Φ30x8x50 |
| 1020:1 | 65000 | 250 | F48 | F14 | Φ30x8x50 |
| 845:1 | 65000 | 300 | F48 | F14 | Φ30x8x50 |
| 565:1 | 65000 | 450 | F48 | F14 | Φ40x12x60 |
| 420:1 | 65000 | 600 | F48 | F16 |
GLEW075K.2 optional ratio configuration - 75000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 3326:1 | 75000 | 100 | F48 | F10 | Φ20x6x40 |
| 1930:1 | 75000 | 150 | F48 | F14 | Φ30x8x50 |
| 1460:1 | 75000 | 200 | F48 | F14 | Φ30x8x50 |
| 1170:1 | 75000 | 250 | F48 | F14 | Φ30x8x50 |
| 960:1 | 75000 | 300 | F48 | F14 | Φ30x8x50 |
| 650:1 | 75000 | 450 | F48 | F14 | Φ40x12x60 |
| 480:1 | 75000 | 600 | F48 | F16 |
GLEW090K.2 optional ratio configuration - 90000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 3750:1 | 90000 | 120 | F48 | F10 | Φ20x6x40 |
| 2310:1 | 90000 | 150 | F48 | F14 | Φ30x8x50 |
| 1730:1 | 90000 | 200 | F48 | F14 | Φ30x8x50 |
| 1390:1 | 90000 | 250 | F48 | F14 | Φ30x8x50 |
| 1160:1 | 90000 | 300 | F48 | F14 | Φ30x8x50 |
| 775:1 | 90000 | 450 | F48 | F14 | Φ40x12x60 |
| 580:1 | 90000 | 600 | F48 | F16 | Φ40x12x60 |
| 390:1 | 90000 | 900 | F48 | F16 |
GLEW120K.2 optional ratio configuration - 120000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 4900:1 | 120000 | 120 | F60 | F10 | Φ20x6x40 |
| 3850:1 | 120000 | 200 | F60 | F14 | Φ30x8x50 |
| 1545:1 | 120000 | 300 | F60 | F14 | Φ30x8x50 |
| 1035:1 | 120000 | 450 | F60 | F14 | Φ30x8x50 |
| 775:1 | 120000 | 600 | F60 | F14 | Φ30x8x50 |
| 520:1 | 120000 | 900 | F60 | F16 | Φ40x12x60 |
| 390:1 | 120000 | 1200 | F60 | F25 | Φ50x14x80 |
| 120000 | F60 |
GLEW150K.2 optional ratio configuration - 150000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 5950:1 | 150000 | 120 | F60 | F10 | Φ20x6x40 |
| 2890:1 | 150000 | 200 | F60 | F14 | Φ30x8x50 |
| 1930:1 | 150000 | 300 | F60 | F14 | Φ30x8x50 |
| 1290:1 | 150000 | 450 | F60 | F14 | Φ30x8x50 |
| 970:1 | 150000 | 600 | F60 | F14 | Φ30x8x50 |
| 650:1 | 150000 | 900 | F60 | F16 | Φ40x12x60 |
| 495:1 | 150000 | 1200 | F60 | F25 | Φ50x14x80 |
| 150000 | F60 |
GLEW200K.2 optional ratio configuration - 200000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 1215:1 | 200000 | 650 | F60 | F14 | Φ30x8x50 |
| 900:1 | 200000 | 880 | F60 | F16 | Φ40x12x60 |
| 600:1 | 200000 | 1300 | F60 | F25 | Φ50x14x80 |
GLEW250K.2 optional ratio configuration - 250000 Nm
Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.
| Ratio | Output Torque | Input Torque | Output Flange | Input Flange | Input Shaft |
|---|---|---|---|---|---|
| 1200:1 | 250000 | 660 | F60 | F14 | Φ30x8x50 |
| 900:1 | 250000 | 880 | F60 | F16 | Φ40x12x60 |
| 600:1 | 250000 | 1300 | F60 | F25 | Φ40x12x60 |
Performance Parameters
Units: torque N·m · thrust kN · linear dimensions mm
| Model | Out. Tq. | In. Tq. | Ratio | Std. Out. | Opt. Out. | In. Flange | In. Shaft |
|---|---|---|---|---|---|---|---|
| GLEW7.5K.1 | 7500 | 80.0 / 100.0 / 150.0 / 200.0 | 379:1 / 288:1 / 192:1 / 145:1 | F25 | F20/F16 | F10/F10/F14/F14 | Φ20x6x40 /Φ20x6x40/ Φ30x8x50/ Φ30x8x50 |
| GLEW010K.1 | 10000 | 100.0 / 150.0 / 200.0 / 250.0 | 413:1 / 256:1 / 192:1 / 150:1 | F30 | F25/F20 | F10/F14/F14/F14 | Φ20x6x40 /Φ20x6x40 /Φ20x6x40 / Φ30x8x50 |
| GLEW13.5K.1 | 13500 | 100.0 / 150.0 / 200.0 / 250.0 / 300.0 | 577:1 / 346:1 / 260:1 / 210:1 / 172:1 | F30 | F25 | F10/F14/F14/F14/F14 | Φ20x6x40 / Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ30x8x50 |
| GLEW17.5K.1 | 17500 | 100.0 / 150.0 / 200.0 / 250.0 / 300.0 | 735:1 / 450:1 / 330:1 / 270:1 / 230:1 | F30 | F25 | F10/F14/F14/F14/F14 | Φ20x6x40 / Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ30x8x50 |
| GLEW024K.1 | 24000 | 90.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 | 1156:1 / 620:1 / 460:1 / 370:1 / 310:1 / 205:1 | F35 | F30/F25 | F10/F14/F14/F14/F14/F14 | Φ20x6x40 / Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ30x8x50 |
| GLEW029K.1 | 29000 | 100.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 | 1276:1 / 740:1 / 560:1 / 450:1 / 380:1 / 255:1 | F35 | F30/F25 | F10/F14/F14/F14/F14/F14 | Φ20x6x40 / Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ30x8x50 |
| GLEW036K.1 | 36000 | 80.0 / 100.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 | 1926:1 / 1390:1 / 930:1 / 800:1 / 690:1 / 465:1 / 310:1 | F40 | F35/F30 | F10/F10/F14/F14/F14/F14/F14 | Φ20x6x40 / Φ20x6x40 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ30x8x50 |
| GLEW042K.1 | 42000 | 80.0 / 100.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 | 2251:1 / 1390:1 / 1076:1 / 810:1 / 655:1 / 540:1 / 360:1 | F48 | F40/F35 | F10/F10/F14/F14/F14/F14/F14 | Φ20x6x40 / Φ20x6x40 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ30x8x50 |
| GLEW053K.1 | 53000 | 100.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 / 600.0 | 2446:1 / 1360:1 / 1030:1 / 820:1 / 680:1 / 465:1 / 345:1 | F48 | F40/F35 | F10/F10/F14/F14/F14/F14/F16 | Φ20x6x40 / Φ20x6x40 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ40x12x60 |
| GLEW065K.1 | 65000 | 100.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 / 600.0 | 2957:1 / 1680:1 / 1260:1 / 1020:1 / 845:1 / 565:1 / 420:1 | F48 | F40/F35 | F10/F14/F14/F14/F14/F14/F16 | Φ20x6x40 / Φ30x8x50 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ40x12x60 |
| GLEW075K.1 | 75000 | 100.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 / 600.0 | 3326:1 / 1930:1 / 1460:1 / 1170:1 / 960:1 / 650:1 / 480:1 | F48 | F35/F30 | F10/F14/F14/F14/F14/F14/F16 | Φ20x6x40 / Φ30x8x50 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ40x12x60 |
| GLEW090K.1 | 90000 | 120.0 / 150.0 / 200.0 / 250.0 / 300.0 / 450.0 / 600.0 / 900.0 | 3750:1 / 2310:1 / 1730:1 / 1390:1 / 1160:1 / 775:1 / 580:1 / 390:1 | F48 | F35/F30 | F10/F14/F14/F14/F14/F14/F16/F16 | Φ20x6x40 / Φ30x8x50 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50/ Φ40x12x60/ Φ40x12x60 |
| GLEW120K.1 | 120000 | 120.0 / 200.0 / 300.0 / 450.0 / 600.0 / 900.0 / 1200.0 | 4900:1 / 3850:1 / 1545:1 / 1035:1 / 775:1 / 520:1 / 390:1 | F60 | F48/F40 | F10/F14/F14/F14/F14/F16/F25 | Φ20x6x40 / Φ30x8x50 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50 /Φ40x12x60/ Φ50x14x80 |
| GLEW150K.1 | 150000 | 120.0 / 200.0 / 300.0 / 450.0 / 600.0 / 900.0 / 1200.0 | 5950:1 / 2890:1 / 1930:1 / 1290:1 / 970:1 / 650:1 / 495:1 | F60 | F48/F40 | F10/F14/F14/F14/F14/F16/F25 | Φ20x6x40 / Φ30x8x50 /Φ30x8x50 / Φ30x8x50 / Φ30x8x50 /Φ40x12x60/ Φ50x14x80 |
| GLEW200K.1 | 200000 | 650.0 / 880.0 / 1300.0 | 1215:1 / 900:1 / 600:1 | F60 | F48 | F14/F16/F25 | Φ30x8x50 / Φ40x12x60 / Φ50x14x80 |
| GLEW250K.1 | 250000 | 660.0 / 880.0 / 1300.0 | 1200:1 / 900:1 / 600:1 | F60 | F48 | F14/F16/F25 | Φ30x8x50 / Φ40x12x60 / Φ40x12x60 |
Connection Dimensions
Unit: mm
| Model | Flange No. | D | D0 | PCD Thread | Boss D | Pin Qty | f | Max. Stem Dia. d | H2 |
|---|---|---|---|---|---|---|---|---|---|
| GLEW7.5K.1 | F16/F20/F25 | 210/260/300 | 165/205/254 | 4×M20-30/8×M16-24/8×M16-24 | 130/140/200 | 2-Φ16/4-Φ16/4-Φ16 | 5/5/5 | 80 | 110 |
| GLEW010K.1 | F20/F25/F30 | 300/300/350 | 205/254/298 | 8×M16-24/8×M16-24/8×M20-30 | 140/200/230 | 4-Φ16/4-Φ16/4-Φ20 | 5/5/5 | 100 | 134 |
| GLEW13.5K.1 | F25/F30 | 350/350 | 254/298 | 8×M16-24/8×M20-30 | 200/230 | 4-Φ16/4-Φ20 | 5/5 | 105 | 152 |
| GLEW17.5K.1 | F25/F30 | 350/350 | 254/298 | 8×M16-24/8×M20-30 | 200/230 | 4-Φ16/4-Φ20 | 5/5 | 110 | 157 |
| GLEW024K.1 | F25/F30/F35 | 415/415/415 | 254/298/356 | 8×M16-24/8×M20-30/8×M30-45 | 200/230/260 | 4-Φ16/4-Φ20/4-Φ30 | 5/5/5 | 120 | 178 |
| GLEW029K.1 | F30/F35 | 415/415 | 298/356 | 8×M20-30/8×M30-45 | 230/260 | 4-Φ20/4-Φ30 | 5/5 | 130 | 180 |
| GLEW036K.1 | F35/F40 | 475/475 | 356/406 | 8×M30-45/8×M36-54 | 260/300 | 4-Φ30/4-Φ40 | 5/8 | 150 | 195 |
| GLEW042K.1 | F35/F40/F48 | 560/560/560 | 356/406/483 | 8×M30-45/8×M36-54/12×M36-54 | 260/300/370 | 4-Φ30/4-Φ40/4-Φ40 | 5/8/8 | 170 | 205 |
| GLEW053K.1 | F35/F40/F48 | 560/560/560 | 356/406/483 | 8×M30-45/8×M36-54/12×M36-54 | 260/300/370 | 4-Φ30/4-Φ40/4-Φ40 | 5/8/8 | 180 | 225 |
| GLEW065K.1 | F35/F40/F48 | 560/560/560 | 356/406/483 | 8×M30-45/8×M36-54/12×M36-54 | 260/300/370 | 4-Φ30/4-Φ40/4-Φ40 | 5/8/8 | 180 | 235 |
| GLEW075K.1 | F35/F40/F48 | 560/560/560 | 356/406/483 | 8×M30-45/8×M36-54/12×M36-54 | 260/300/370 | 4-Φ30/4-Φ40/4-Φ40 | 5/8/8 | 185 | 248 |
| GLEW090K.1 | F35/F40/F48 | 560/560/560 | 356/406/483 | 8×M30-45/8×M36-54/12×M36-54 | 260/300/370 | 4-Φ30/4-Φ40/4-Φ40 | 5/8/8 | 190 | 258 |
| GLEW120K.1 | F40/F48/F60 | 686/686/686 | 406/483/603 | 8×M36-54/12×M36-54/12×M36-54 | 300/370/470 | 4-Φ40/4-Φ40/4-Φ40 | 8/8/8 | 200 | 280 |
| GLEW150K.1 | F40/F48/F60 | 686/686/686 | 406/483/603 | 8×M36-54/12×M36-54/12×M36-54 | 300/370/470 | 4-Φ40/4-Φ40/4-Φ40 | 8/8/8 | 200 | 285 |
| GLEW200K.1 | F40/F48/F60 | 686/686/686 | 406/483/603 | 8×M36-54/12×M36-54/12×M36-54 | 300/370/470 | 4-Φ40/4-Φ40/4-Φ40 | 8/8/8 | 220 | 350 |
| GLEW250K.1 | F40/F48/F60 | 686/686/686 | 406/483/603 | 8×M36-54/12×M36-54/12×M36-54 | 300/370/470 | 4-Φ40/4-Φ40/4-Φ40 | 8/8/8 | 240 | 400 |
Overall Dimensions
Unit: mm · Weight: kg
| Model | A | B | C | C1 | L | L1 | H | H1 | H3 | F-Z |
|---|---|---|---|---|---|---|---|---|---|---|
| GLEW7.5K.1 | 300 | 300 | 140 | 150 | 290 | 125 | 63 | -20 | F10/Z10 | |
| GLEW010K.1 | 350 | 350 | 150 | 175 | 310 | 125 | 80 | -20 | F10/Z10 | |
| GLEW13.5K.1 | 350 | 415 | 160 | 175 | 331 | 165 | 85 | 10 | F10/Z30 | |
| GLEW17.5K.1 | 350 | 415 | 173.5 | 175 | 345 | 165 | 85 | 10 | F10/Z30 | |
| GLEW024K.1 | 415 | 415 | 187 | 87.5 | 207.5 | 362 | 175 | 100 | 15 | F14/Z30 |
| GLEW029K.1 | 415 | 415 | 204 | 87.5 | 207.5 | 405 | 175 | 100 | 15 | F14/Z30 |
| GLEW036K.1 | 475 | 475 | 239 | 97.5 | 237.5 | 435 | 175 | 110 | 15 | F14/Z30 |
| GLEW042K.1 | 560 | 560 | 257 | 97.5 | 280 | 462 | 210 | 130 | 32.5 | F14/Z30 |
| GLEW053K.1 | 560 | 560 | 275 | 97.5 | 280 | 465 | 210 | 130 | 32.5 | F14/Z30 |
| GLEW065K.1 | 560 | 560 | 275 | 97.5 | 280 | 472 | 210 | 130 | 32.5 | F14/Z30 |
| GLEW075K.1 | 590 | 560 | 321 | 120 | 295 | 472 | 315 | 140 | 7.5 | F16/Z45 |
| GLEW090K.1 | 630 | 560 | 321 | 120 | 315 | 490 | 315 | 140 | 7.5 | F16/Z45 |
| GLEW120K.1 | 686 | 686 | 340 | 132 | 343 | 530 | 315 | 150 | 7.5 | F16/Z60 |
| GLEW150K.1 | 686 | 686 | 340 | 132 | 343 | 530 | 315 | 150 | 7.5 | F25/Z90 |
| GLEW200K.1 | 720 | 963 | 373 | 360 | 625 | 460 | 150 | 7.5 | F25/Z90 | |
| GLEW250K.1 | 850 | 1090 | 435 | 425 | 675 | 460 | 150 | 7.5 | F25/Z90 |
Engineering Drawing
Dimensional Drawing
Structure Diagram
Product Structure View
Material Configuration
Engineering Material List
| No. | Part Name | Material | UK Standard | USA Standard |
|---|---|---|---|---|
| 1 | Worm Gearcase | Ductile Iron | BS 2789 450/10 | ASTM A536 65-45-12 |
| 2 | Alloy Bushing | SF-1 | SF-1 | SF-1 |
| 3 | Thrust Bearing | Steel | BS 535A99 | AISI/SAE 52100 |
| 4 | Worm Shaft | Steel | BS 080A47 | AISI/SAE 1045 |
| 5 | Worm | Steel | BS 970 530M40 | AISI/SAE 5140 |
| 6 | End Cap | Ductile Iron | BS 2789 450/10 | ASTM A536 65-45-12 |
| 7 | Turbine | Ductile Iron | BS 2789 600/3 | ASTM A536 80-55-06 |
| 8 | Cover | Ductile Iron | BS 2789 450/10 | ASTM A536 65-45-12 |
| 9 | Position Indicator Gasket | Nitrile rubber | Nitrile rubber | Nitrile rubber |
| 10 | Position Indicator | Steel | BS 080A25 | AISI/SAE 1025 |
| 11 | Actuator Connecting Flange | Ductile Iron | BS 2789 450/10 | ASTM A536 65-45-12 |
| 12 | Reducer Gear Case Cover | Ductile Iron | BS 2789 450/10 | ASTM A536 65-45-12 |
| 13 | Gear | Steel | BS 970 530M40 | AISI/SAE 5140 |
| 14 | Reducer Main Shaft Gear | Steel | BS 970 530M40 | AISI/SAE 5140 |
| 15 | Reducer Gearcase | Ductile Iron | BS 2789 450/10 | ASTM A536 65-45-12 |
Compatibility
Compatibility & Actuator Interface
Actuator Compatibility
Yes
Explosion Proof
by_actuator
Industrial Reliability
Structured gearbox data for engineering selection and project documentation.
TFC provides engineered gearbox solutions for demanding valve applications, with technical support for model selection, torque matching, project documentation and OEM requirements.
Torque SelectionInterface MatchingOEM AvailableEngineering SupportAI-ready Data
FAQ
Frequently Asked Questions
What is the torque range of the GLEW series gearbox?
The gearbox supports torque outputs from 7,500 Nm to 250,000 Nm.
Does the gearbox have an ISO 5211 interface?
It includes an ISO 5211 flange for direct valve mounting and actuator interface.
Can it support different input torque ratios?
Yes, it supports multiple gear ratios for actuator input torque matching.
Does the gearbox have a self-locking feature?
The worm gear transmission provides a self-locking function for valve position retention.
Which valve types are compatible with this quarter turn gearbox?
It is compatible with butterfly, ball, plug valves, dampers, and quarter-turn shut-off valves.
Need engineering assistance?
Send us your valve type, required torque, stem dimensions, flange standard and working conditions. Our engineering team will recommend a suitable gearbox model.
Torque SelectionValve MatchingCAD / STEP Available
