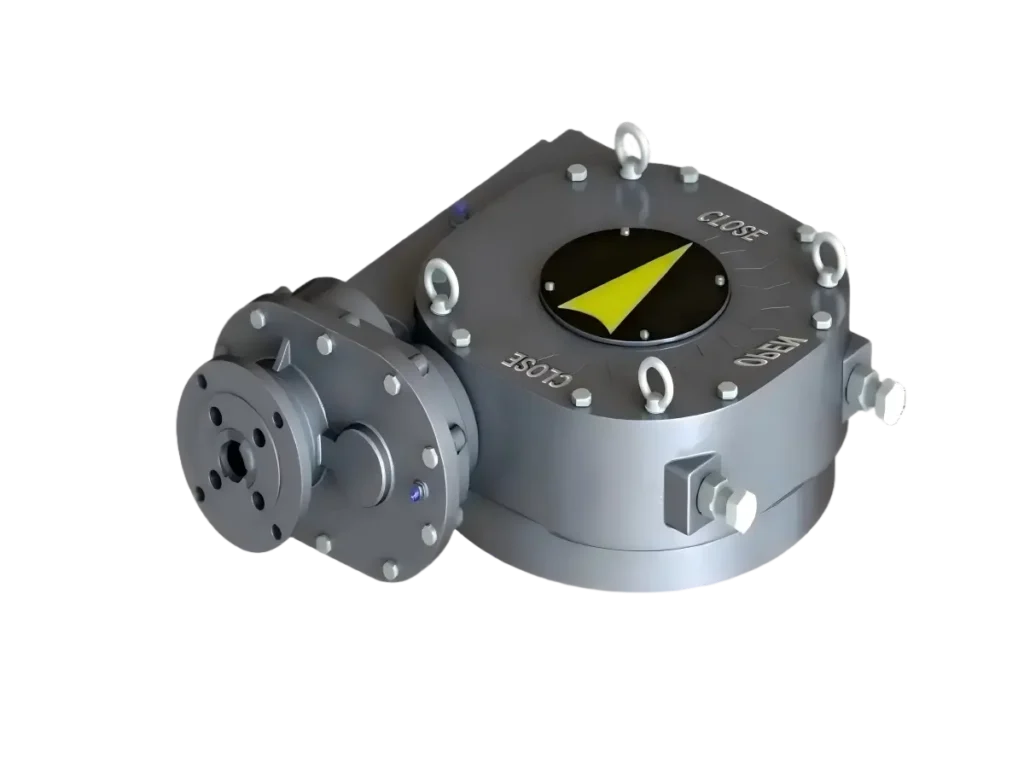

ALEW1200.2-ALEW350K.2 engineering image

Typemanual_and_actuator_ready

Torque1,200 nm – 350,000 nm

Ratio77.2:1/96:1/121.4:1

AL / ALEW1200.2-ALEW350K.2 / electric_ready_identity

ALEW1200.2-ALEW350K.2

ALEW1200.2-ALEW350K.2 Valve Gearbox Series

ALEW1200.2-ALEW350K.2 is organized as one product page group from source sheet ALEW-39 40 41 42 43 44, with actual model variants preserved separately.

high_torqueelectric_readyworm_gearquarter_turnip68butterfly_valvemarinelarge_diameterheavy_dutyhigh_cycle

Request a Quote View Technical Data

⚙

Torque Range

1,200 nm – 350,000 nm

↻

Primary Ratio

77.2:1/96:1/121.4:1

⌁

Operation Mode

manual_and_actuator_ready

PL

Platform

AL

TFC

Engineering gearbox selection support

ISO

Interface and documentation oriented

OEM

Custom gearbox configuration available

AI

Structured data prepared for future selector

CAD

Engineering files and drawings supported

Overview Ratio Technical Data Compatibility Downloads FAQ Request Quote

Product Overview

ALEW1200.2-ALEW350K.2 Valve Gearbox Series

ALEW1200. 1-ALEW350K. 1 is a multi-stage worm gearbox for quarter-turn valve automation.

The ALEW1200. 2-ALEW350K. 2 series is a multi-stage worm gearbox designed for quarter-turn valve automation. It transmits torque through a worm gear transmission with self-locking function.

Ratio & Input Configuration Matrix

ALEW1200.2 optional ratio configuration - 1200 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
77.2:1	1200	60	F14	F10	Φ20×6×40
96:1	1200	50	F14	F10	Φ20×6×40
121.4:1	1200	40	F14	F10	Φ20×6×40

ALEW3000.2 optional ratio configuration - 3000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
112:1	3000	120	F16	F10	Φ20×6×40
126:1	3000	100	F16	F10	Φ20×6×40
157:1	3000	80	F16	F10	Φ20×6×40
208:1	3000	60	F16	F10	Φ20×6×40
261:1	3000	50	F16	F10	Φ20×6×40
305:1	3000	40	F16	F10	Φ20×6×40

ALEW4500.2 optional ratio configuration - 4500 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
155:1	4500	120	F20	F10	Φ20×6×40
193:1	4500	100	F20	F10	Φ20×6×40
255:1	4500	80	F20	F10	Φ20×6×40
299:1	4500	60	F20	F10	Φ20×6×40
379:1	4500	50	F20	F10	Φ20×6×40

ALEW7500.2optional ratio configuration - 7500 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
155:1	7500	200	F25	F14	Φ30×8×50
204:1	7500	150	F25	F14	Φ30×8×50
255:1	7500	120	F25	F10	Φ20×6×40
325:1	7500	100	F25	F10	Φ20×6×40
383:1	7500	80	F25	F10	Φ20×6×40

ALEW9000.2 optional ratio configuration - 9000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
155:1	9000	250	F25	F14	Φ30×8×50
180:1	9000	200	F25	F14	Φ30×8×50
259:1	9000	150	F25	F14	Φ30×8×50
354:1	9000	120	F25	F10	Φ20×6×40
384:1	9000	100	F25	F10	Φ20×6×40

ALEW13.5K.2 optional ratio configuration - 13500 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
121:1	13500	450	F30	F14	Φ30×8×50
180:1	13500	300	F30	F14	Φ30×8×50
193:1	13500	250	F30	F14	Φ30×8×50
260:1	13500	200	F30	F14	Φ30×8×50

ALEW018K.2 optional ratio configuration - 18000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
160:1	18000	474	F30	F14	Φ30×8×50
186:1	18000	400	F30	F14	Φ30×8×50
248:1	18000	300	F30	F14	Φ30×8×50
338:1	18000	250	F30	F14	Φ30×8×50

ALEW026K.2 optional ratio configuration - 26000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
260:1	26000	450	F35	F14	Φ30×8×50
353:1	26000	300	F35	F14	Φ30×8×50
446:1	26000	250	F35	F14	Φ30×8×50
540:1	26000	200	F35	F14	Φ30×8×50
711:1	26000	150	F35	F10	Φ20×6×40

ALEW036K.2 optional ratio configuration - 36000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
275:1	36000	600	F40	F16	Φ40×12×60
328:1	36000	450	F40	F14	Φ30×8×50
506:1	36000	300	F40	F14	Φ30×8×50
616:1	36000	250	F40	F14	Φ30×8×50
758:1	36000	200	F40	F14	Φ30×8×50

ALEW053K.2 optional ratio configuration - 53000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
368:1	53000	600	F48	F16	Φ40×12×60
448:1	53000	500	F48	F14	Φ30×8×50
565:1	53000	400	F48	F14	Φ30×8×50
732:1	53000	300	F48	F14	Φ30×8×50
901:1	53000	250	F48	F14	Φ30×8×50

ALEW065K.2 optional ratio configuration - 65000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
308:1	65000	900	F48	F25	Φ50×14×80
446:1	65000	600	F48	F16	Φ40×12×60
528:1	65000	500	F48	F14	Φ30×8×50
675:1	65000	400	F48	F14	Φ30×8×50
948:1	65000	300	F48	F14	Φ30×8×50

ALEW075K.2 optional ratio configuration - 75000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
200:1	75000	1350	F48	F25	Φ50×14×80
235:1	75000	1200	F48	F25	Φ50×14×80
349:1	75000	900	F48	F25	Φ50×14×80
535:1	75000	600	F48	F16	Φ40×12×60
648:1	75000	500	F48	F14	Φ30×8×50

ALEW090K.2 optional ratio configuration - 90000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
171:1	90000	1800	F48	F25	Φ50×14×80
262:1	90000	1350	F48	F25	Φ50×14×80
327:1	90000	1200	F48	F25	Φ50×14×80
413:1	90000	900	F48	F25	Φ50×14×80
684:1	90000	600	F48	F16	Φ40×12×60

ALEW120K.2 optional ratio configuration - 120000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
266:1	120000	1800	F60	F25	Φ50×14×80
390:1	120000	1200	F60	F25	Φ50×14×80
520:1	120000	900	F60	F25	Φ50×14×80
775:1	120000	600	F60	F25	Φ30×8×50
1545:1	120000	300	F60	F25	Φ30×8×50

ALEW160K.2 optional ratio configuration - 160000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
355:1	160000	1800	F60	F25	Φ50×14×80
400:1	160000	1490	F60	F25	Φ50×14×80
451:1	160000	1350	F60	F25	Φ50×14×80
515:1	160000	1200	F60	F25	Φ50×14×80
702:1	160000	900	F60	F25	Φ50×14×80

ALEW180K.2 optional ratio configuration - 180000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
426:1	180000	1800	F60	F25	Φ50×14×80
626:1	180000	1200	F60	F25	Φ50×14×80
812:1	180000	900	F60	F25	Φ50×14×80
1215:1	180000	600	F60	F16	Φ40×12×60
1567:1	180000	450	F60	F14	Φ30×8×50

ALEW230K.2optional ratio configuration - 230000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
546:1	230000	1800	F60	F25	Φ50×14×80
661:1	230000	1490	F60	F25	Φ50×14×80
809:1	230000	1200	F60	F25	Φ50×14×80
1059:1	230000	900	F60	F25	Φ50×14×80
1828:1	230000	500	F60	F14	Φ30×8×50

ALEW270K.2 optional ratio configuration - 270000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
486:1	270000	2500	F60	F25	Φ50×14×80
629:1	270000	1800	F60	F25	Φ50×14×80
948:1	270000	1200	F60	F25	Φ50×14×80
1260:1	270000	900	F60	F25	Φ50×14×80
1828:1	270000	600	F60	F16	Φ40×12×60

ALEW350K.2 optional ratio configuration - 350000 Nm

Electric-ready gearbox optional ratio and input torque combinations. Ratios and input torques are paired by source order.

Ratio	Output Torque	Input Torque	Output Flange	Input Flange	Input Shaft
570:1	350000	2500	F60	F25	Φ50×14×80
782:1	350000	1800	F60	F25	Φ50×14×80
1200:1	350000	1200	F60	F25	Φ50×14×80
1616:1	350000	900	F60	F25	Φ50×14×80
1958:1	350000	745	F60	F16	Φ40×12×60

Performance Parameters

Units: torque N·m · thrust kN · linear dimensions mm

Model	Out. Tq.	In. Tq.	Ratio	Std. Out.	Opt. Out.	In. Shaft	ISO 5210	ISO 5211
ALEW1200.2	1200	60 / 50 / 40	77.2:1/96:1/121.4:1	F14	F12	Φ20×6×40	F10	Z10
ALEW3000.2	3000	120 / 100 / 80 / 60 / 50 / 40	112:1/126:1/157:1/208:1/261:1/305:1	F16	F14	Φ20×6×40	F10	Z10
ALEW4500.2	4500	120 / 100 / 80 / 60 / 50	155:1/193:1/255:1/299:1/379:1	F20	F16	Φ20×6×40	F10	Z10
ALEW7500.2	7500	200 / 150 / 120 / 100 / 80	155:1/204:1/255:1/325:1/383:1	F25	F20	Φ30×8×50/Φ30×8×50/Φ20×6×40/Φ20×6×40/Φ20×6×40	F14/F14/F10/F10/F10	Z20/Z20/Z10/Z10/Z10
ALEW9000.2	9000	250 / 200 / 150 / 120 / 100	155:1/180:1/259:1/354:1/384:1	F25	F20	Φ30×8×50/Φ30×8×50/Φ30×8×50/Φ20×6×40/Φ20×6×40	F14/F14/F14/F10/F10	Z30/Z20/Z20/Z10/Z10
ALEW13.5K.2	13500	450 / 300 / 250 / 200	121:1/180:1/193:1/260:1	F30	F25	Φ30×8×50	F14	Z45/Z30/Z30/Z20
ALEW018K.2	18000	474 / 400 / 300 / 250	160:1/186:1/248:1/338:1	F30	F25	Φ30×8×50	F14	Z45/Z45/Z30/Z30
ALEW026K.2	26000	450 / 300 / 250 / 200 / 150	260:1/353:1/446:1/540:1/711:1	F35	F30	Φ30×8×50/Φ30×8×50/Φ30×8×50/Φ30×8×50/Φ20×6×40	F14/F14/F14/F14/F10	Z45/Z30/Z30/Z30/Z15
ALEW036K.2	36000	600 / 450 / 300 / 250 / 200	275:1/328:1/506:1/616:1/758:1	F40	F35	Φ40×12×60/Φ30×8×50/Φ30×8×50/Φ30×8×50/Φ30×8×50	F16/F14/F14/F14/F14	Z60/Z45/Z30/Z30/Z30
ALEW053K.2	53000	600 / 500 / 400 / 300 / 250	368:1/448:1/565:1/732:1/901:1	F48	F40	Φ40×12×60/Φ30×8×50/Φ30×8×50/Φ30×8×50/Φ30×8×50	F16/F14/F14/F14/F14	Z60/Z45/Z45/Z30/Z30
ALEW065K.2	65000	900 / 600 / 500 / 400 / 300	308:1/446:1/528:1/675:1/948:1	F48	F40	Φ50×14×80/Φ40×12×60/Φ30×8×50/Φ30×8×50/Φ30×8×50	F25/F16/F14/F14/F14	Z90/Z60/Z60/Z45/Z30
ALEW075K.2	75000	1350 / 1200 / 900 / 600 / 500	200:1/235:1/349:1/535:1/648:1	F48	F40	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ40×12×60/Φ30×8×50	F25/F25/F25/F16/F14	Z120/Z120/Z90/Z60/Z60
ALEW090K.2	90000	1800 / 1350 / 1200 / 900 / 600	171:1/262:1/327:1/413:1/684:1	F48	F40	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ40×12×60	F25/F25/F25/F25/F16	Z180/Z120/Z120/Z90/Z60
ALEW120K.2	120000	1800 / 1200 / 900 / 600 / 300	266:1/390:1/520:1/775:1/1545:1	F60	F48	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ30×8×50/Φ30×8×50	F25	Z180/Z120/Z90/Z60/Z30
ALEW160K.2	160000	1800 / 1490 / 1350 / 1200 / 900	355:1/400:1/451:1/515:1/702:1	F60	F48/F40	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ50×14×80	F25	Z180/Z120/Z120/Z120/Z90
ALEW180K.2	180000	1800 / 1200 / 900 / 600 / 450	426:1/626:1/812:1/1215:1/1567:1	F60	F8/F40	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ40×12×60/Φ30×8×50	F25/F25/F25/F16/F14	Z180/Z120/Z90/Z60/Z45
ALEW230K.2	230000	1800 / 1490 / 1200 / 900 / 500	546:1/661:1/809:1/1059:1/1828:1	F60	F48/F40	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ30×8×50	F25/F25/F25/F25/F14	Z180/Z180/Z120/Z90/Z60
ALEW270K.2	270000	2500 / 1800 / 1200 / 900 / 600	486:1/629:1/948:1/1260:1/1828:1	F60	F48	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ40×12×60	F25/F25/F25/F25/F16	Z250/Z180/Z120/Z120/Z60
ALEW350K.2	350000	2500 / 1800 / 1200 / 900 / 745	570:1/782:1/1200:1/1616:1/1958:1	F60	F48	Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ50×14×80/Φ40×12×60	F25/F25/F25/F25/F16	Z250/Z180/Z120/Z90/Z90

Connection Dimensions

Unit: mm

Model	Flange No.	D	D0	PCD Thread	Boss D	Pin Qty	f	Max. Stem Dia. d	H2
ALEW1200.2	F12/F14	175/175	125/140	4×M12-18/4×M16-24	85/100	2-Φ10/2-Φ12	3/4	45	90
ALEW3000.2	F14/F16	210/210	140/165	4×M16-24/4×M20-30	100/130	2-Φ12/2-Φ16	4/5	65	103
ALEW4500.2	F16/F20	250/250	165/205	4×M20-30/8×M16-24	130/140	2-Φ16/4-Φ16	5/5	70	123
ALEW7500.2	F20/F25	300/300	205/254	8×M16-24/8×M16-24	140/200	4-Φ16/4-Φ16	5/5	80	120
ALEW9000.2	F20/F25	350/350	205/254	8×M16-24/8×M16-24	140/200	4-Φ16/4-Φ16	5/5	100	140
ALEW13.5K.2	F25/F30	350/350	254/298	8×M16-24/8×M20-30	200/230	4-Φ16/4-Φ20	5/5	105	150
ALEW018K.2	F25/F30	350/350	254/298	8×M16-24/8×M20-30	200/230	4-Φ16/4-Φ20	5/5	110	155
ALEW026K.2	F30/F35	415/415	298/356	8×M20-30/8×M30-45	230/260	4-Φ20/4-Φ30	5/5	120	175
ALEW036K.2	F35/F40	475/475	356/406	8×M30-45/8×M36-54	260/300	4-Φ30/4-Φ40	5/8	150	190
ALEW053K.2	F40/F48	560/560	406/483	8×M36-54/12×M36-54	300/370	4-Φ40/4-Φ40	8/8	180	223
ALEW065K.2	F40/F48	560/560	406/483	8×M36-54/12×M36-54	300/370	4-Φ40/4-Φ40	8/8	180	230
ALEW075K.2	F40/F48	560/560	406/483	8×M36-54/12×M36-54	300/370	4-Φ40/4-Φ40	8/8	185	245
ALEW090K.2	F40/F48	560/560	406/483	8×M36-54/12×M36-54	300/370	4-Φ40/4-Φ40	8/8	190	260
ALEW120K.2	F48/F60	686/686	483/603	12×M36-54/20×M36-54	370/470	4-Φ40/4-Φ40	8/8	205	284
ALEW160K.2	F48/F60	686/686	483/603	12×M36-54/20×M36-54	370/470	4-Φ40/4-Φ40	8/8	215	288
ALEW180K.2	F48/F60	686/686	483/603	12×M36-54/20×M36-54	370/470	4-Φ40/4-Φ40	8/8	220	315
ALEW230K.2	F48/F60	686/686	483/603	12×M36-54/20×M36-54	370/470	4-Φ40/4-Φ40	8/8	230	335
ALEW270K.2	F48/F60	686/686	483/603	12×M36-54/20×M36-54	370/470	4-Φ40/4-Φ40	8/8	240	372
ALEW350K.2	F48/F60	686/686	483/603	12×M36-54/20×M36-54	370/470	4-Φ40/4-Φ40	8/8	310	395

Overall Dimensions

Unit: mm · Weight: kg

Model	A	B	C	C1	L	L1	H	H1	H3	F-Z
ALEW1200.2	175	230.5	78	60	92.0	205.0	130.0	47	-7.5	Z10
ALEW3000.2	210	273.5	106	/	120.0	266.0	125.0	55	0.0	F10
ALEW4500.2	250	328.0	121	/	135.0	291.0	165.0	58	20.0	F10
ALEW7500.2	300	372.5	140	/	150.0	311.5	165.0	58	20.0	F10
ALEW9000.2	300	382.5	150	/	162.5	318.5	165.0	80	20.0	F10
ALEW13.5K.2	350	417.5	160	/	175.0	339.0	165.0	85	20.0	F10
ALEW018K.2	350	436.0	173.5	/	178.0	359.0	175.0	85	-5.0	Z30
ALEW026K.2	415	534.5	187	/	208.0	450.0	280.0	100	27.5	Z45
ALEW036K.2	475	616.5	239	/	243.0	485.0	280.0	110	27.5	Z45
ALEW053K.2	560	695.0	275	/	280.0	515.0	280.0	130	27.5	Z45
ALEW065K.2	575	714.5	287	/	287.5	525.0	280.0	130	27.5	Z45
ALEW075K.2	590	762.0	307	/	307.0	545.0	320.0	140	47.5	Z45
ALEW090K.2	630	796.0	321	/	322.0	560.0	320.0	140	47.5	Z45
ALEW120K.2	686	865.5	340	/	360.0	593.0	365.0	150	70.0	Z45
ALEW160K.2	730	919.5	372	/	365.0	593.0	365.0	150	70.0	Z45
ALEW180K.2	730	968.0	373	/	390.0	655.0	460.0	162	80.0	F25
ALEW230K.2	810	1058.0	423	/	405.0	665.0	460.0	162	80.0	F25
ALEW270K.2	960	1205.0	495	/	480.0	735.0	460.0	192	80.0	F25
ALEW350K.2	1040	1275.0	525	/	520.0	775.0	460.0	192	80.0	F25

Engineering Drawing

Dimensional Drawing

ALEW1200.2-ALEW350K.2 dimensional drawing

Structure Diagram

Product Structure View

ALEW1200.2-ALEW350K.2 structure diagram

Material Configuration

Engineering Material List

No.	Part Name	Material	UK Standard	USA Standard
1	Worm Gearcase	Ductile Iron	BS 2789 450/10	ASTM A536 65-45-12
2	Alloy Bushing	SF-1	SF-1	SF-1
3	Thrust Bearing	Steel	BS 535A99	AISI/SAE 52100
4	Worm Shaft	Steel	BS 080A47	AISI/SAE 1045
5	Worm	Steel	BS 970 530M40	AISI/SAE 5140
6	End Cap	Ductile Iron	BS 2789 450/10	ASTM A536 65-45-12
7	Turbine	Ductile Iron	BS 2789 600/3	ASTM A536 80-55-06
8	Cover	Ductile Iron	BS 2789 450/10	ASTM A536 65-45-12
9	Position Indicator Gasket	Nitrile rubber	Nitrile rubber	Nitrile rubber
10	Position Indicator	Steel	BS 080A25	AISI/SAE 1025
11	Actuator Connecting Flange	Ductile Iron	BS 2789 450/10	ASTM A536 65-45-12
12	Reducer Gear Case Cover	Ductile Iron	BS 2789 450/10	ASTM A536 65-45-12
13	Gear	Steel	BS 970 530M40	AISI/SAE 5140
14	Reducer Main Shaft Gear	Steel	BS 970 530M40	AISI/SAE 5140
15	Reducer Gearcase	Ductile Iron	BS 2789 450/10	ASTM A536 65-45-12

Compatibility

Compatibility & Actuator Interface

Explosion Proof by_actuator

Industrial Reliability

Structured gearbox data for engineering selection and project documentation.

TFC provides engineered gearbox solutions for demanding valve applications, with technical support for model selection, torque matching, project documentation and OEM requirements.

Torque SelectionInterface MatchingOEM AvailableEngineering SupportAI-ready Data

FAQ

Frequently Asked Questions

What is the torque range of the ALEW1200.2-ALEW350K.2 gearbox?

The gearbox supports torque ranges from 1200 to 350000 Nm depending on model.

Does the gearbox have an ISO 5211 interface?

It includes an ISO 5211 flange interface for direct actuator mounting.

Can the gearbox be configured with different gear ratios?

Yes, it supports multiple gear ratios for actuator selection and input torque matching.

Which valve types are compatible with this gearbox?

It is designed for quarter-turn valves including butterfly, ball, plug valves, and dampers.

Does the gearbox have a self-locking feature?

The worm gear transmission provides a self-locking function to prevent back-driving.

Need engineering assistance?

Send us your valve type, required torque, stem dimensions, flange standard and working conditions. Our engineering team will recommend a suitable gearbox model.

Torque SelectionValve MatchingCAD / STEP Available

Contact Engineering Team

Request Quote →
